树莓派+siri语音控制

友情提示：380元/半年，儿童学编程，就上码丁实验室。

https://www.zhihu.com/video/951860902182469632

Introduction

先前做了一个利用siri或手机自带的Homekit控制LED或者继电器的实验。PI3亲测可行。遇到了些许坑，以此做一些经验总结。这个实验关键部分是利用HAP-NodeJS（Homekit辅助服务器的一种实现，也叫做homekit bridge，意思是连接将homekit代码连接wifi设备的桥梁，可以将其部署至RPI等平台），其中需要安装javascript的运行环境：node.js（说白了就是开发网页的工具）；利用npm安装一系列模块：node，srp等等。

what you will need

RaspberryPI3

杜邦线

面包板

LED或者继电器

装有类似Homekit的APP的手机，我也试了一下eve可以用，如果要用到siri的话，就需要iphone了。

What you will do

先将树莓派装好系统，最新版的即可，我之前试了几次未成功以为要装回原来的就系统，后来试了之后才发现没有必要。
用putty连上Rpi
安装模块： sudo apt-get install npm git-core libnss-mdns libavahi-compat-libdnssd-dev
安装新版的nodejs：如果尝试使用apt-get来安装的话，你会发现版本太老导致无法使用，这里需要使用到wget从网上下载linux版本安装。在这里卡住了几次，可以先去一下官网了解一下版本信息： http://nodejs.org至 download/release/latest-v5.x.0/.

wget https://nodejs.org/download/release/latest-v5.x.0/node-v5.5.0-linux-armv7l.tar.gz
tar -xvf node-v5.5.0-linux-armv7l.tar.gz
cd node-v5.5.0-linux-armv7l
sudo cp -R * /usr/local

安装成功后检查下版本是否更新:

node version

安装node模块，npm全称为 Node Package Manager：

sudo npm install -g npm
sudo npm install -g node-gyp

5. 最后配置HAP-Nodejs：

git clone https://github.com/KhaosT/HAP-NodeJS.git
cd HAP-NodeJS
npm rebuild
sudo npm install node-persist
sudo npm install srp
sudo npm install mdns --unsafe-perm
sudo npm install debug
sudo npm install ed25519 --unsafe-perm
sudo npm install curve25519 --unsafe-perm

中途可能会遇到安装error出现有点烦，但是他会告诉你是哪个模块缺失之类的，所以针对这些缺少的模块再安装（sudo npm install）一遍。

6. 增加新的灯泡辅件,在HAP-NodeJS文件夹下面找到 accessories，里面已经有了一些.js文件，这些文件时javascript代码，你也可以新建一个你需要命名的设备：

cd accessories
nano myLight_accessory.js

将一些代码复制至.js文件，light0和light1是python代码分别用来控制gpio的on和off：

var PythonShell = require('python-shell');
// HomeKit types required
var types = require("./types.js")
var exports = module.exports = {};
var execute = function(accessory,characteristic,value){ console.log("executed accessory: " + accessory + ", and characteristic: " + characteristic + ", with value: " +  value + "."); }
exports.accessory = {
 displayName: "Light 1",
 username: "1A:2B:3C:4D:5E:FF",
 pincode: "031-45-154",
 services: [{
   sType: types.ACCESSORY_INFORMATION_STYPE,
   characteristics: [{
       cType: types.NAME_CTYPE,
       onUpdate: null,
       perms: ["pr"],
       format: "string",
       initialValue: "Light 1",
       supportEvents: false,
       supportBonjour: false,
       manfDescription: "Bla",
       designedMaxLength: 255
   },{
       cType: types.MANUFACTURER_CTYPE,
       onUpdate: null,
       perms: ["pr"],
       format: "string",
       initialValue: "Oltica",
       supportEvents: false,
       supportBonjour: false,
       manfDescription: "Bla",
       designedMaxLength: 255
   },{
       cType: types.MODEL_CTYPE,
       onUpdate: null,
       perms: ["pr"],
       format: "string",
       initialValue: "Rev-1",
       supportEvents: false,
       supportBonjour: false,
       manfDescription: "Bla",
       designedMaxLength: 255
   },{
       cType: types.SERIAL_NUMBER_CTYPE,
       onUpdate: null,
       perms: ["pr"],
       format: "string",
       initialValue: "A1S2NASF88EW",
       supportEvents: false,
       supportBonjour: false,
       manfDescription: "Bla",
       designedMaxLength: 255
   },{
       cType: types.IDENTIFY_CTYPE,
       onUpdate: null,
       perms: ["pw"],
       format: "bool",
       initialValue: false,
       supportEvents: false,
       supportBonjour: false,
       manfDescription: "Identify Accessory",
       designedMaxLength: 1
   }]
 },{
   sType: types.LIGHTBULB_STYPE,
   characteristics: [{
       cType: types.NAME_CTYPE,
       onUpdate: null,
       perms: ["pr"],
       format: "string",
       initialValue: "Light 1 Light Service",
       supportEvents: false,
       supportBonjour: false,
       manfDescription: "Bla",
       designedMaxLength: 255
   },{
       cType: types.POWER_STATE_CTYPE,
       onUpdate: function(value)
   {
           console.log("Change:",value);
           if (value) {
           PythonShell.run('light1.py', function (err) {
                console.log('On Success');
           });
           } else {
               PythonShell.run('light0.py', function (err) {
                   console.log("Off Success");

               });
           }
       },
       perms: ["pw","pr","ev"],
       format: "bool",
       initialValue: false,
       supportEvents: false,
       supportBonjour: false,
       manfDescription: "Turn On the Light",
       designedMaxLength: 1
   },{
       cType: types.HUE_CTYPE,
       onUpdate: function(value) { console.log("Change:",value); execute("Test Accessory 1", "Light - Hue", value); },
       perms: ["pw","pr","ev"],
       format: "int",
       initialValue: 0,
       supportEvents: false,
       supportBonjour: false,
       manfDescription: "Doesn’t actually adjust Hue of Light",
       designedMinValue: 0,
       designedMaxValue: 360,
       designedMinStep: 1,
       unit: "arcdegrees"
   },{
       cType: types.BRIGHTNESS_CTYPE,
       onUpdate: function(value) { console.log("Change:",value); execute("Test Accessory 1", "Light - Brightness", value); },
       perms: ["pw","pr","ev"],
       format: "int",
       initialValue: 0,
       supportEvents: false,
       supportBonjour: false,
       manfDescription: "Doesn’t actually adjust Brightness of Light",
       designedMinValue: 0,
       designedMaxValue: 100,
       designedMinStep: 1,
       unit: "%"
   },{
       cType: types.SATURATION_CTYPE,
       onUpdate: function(value) { console.log("Change:",value); execute("Test Accessory 1", "Light - Saturation", value); },
       perms: ["pw","pr","ev"],
       format: "int",
       initialValue: 0,
       supportEvents: false,
       supportBonjour: false,
       manfDescription: "Doesn’t actually adjust Saturation of Light",
       designedMinValue: 0,
       designedMaxValue: 100,
       designedMinStep: 1,
       unit: "%"
   }]
 }]
}

在HAP-NodeJS文件夹下新建一个python文件，并编写python代码：

cd ..
mkdir python
cd python
nano light1.py

python1.py控制gpio16开:

import RPi.GPIO as GPIO
GPIO.setwarnings(False)
GPIO.setmode(GPIO.BOARD)
GPIO.setup(16, GPIO.OUT)
GPIO.output(16, 1)
保存并关闭
nano light0.py

同样复制至light0.py:

import RPi.GPIO as GPIO
GPIO.setwarnings(False)
GPIO.setmode(GPIO.BOARD)
GPIO.setup(16, GPIO.OUT)
GPIO.output(16, 0)

LED接线就不解释了，进行下一步前可以先试运行下代码是否控制成功：

python light1.py
python light0.py

使用npm rebuild，最后开启Homekit Bridge：node Core.js

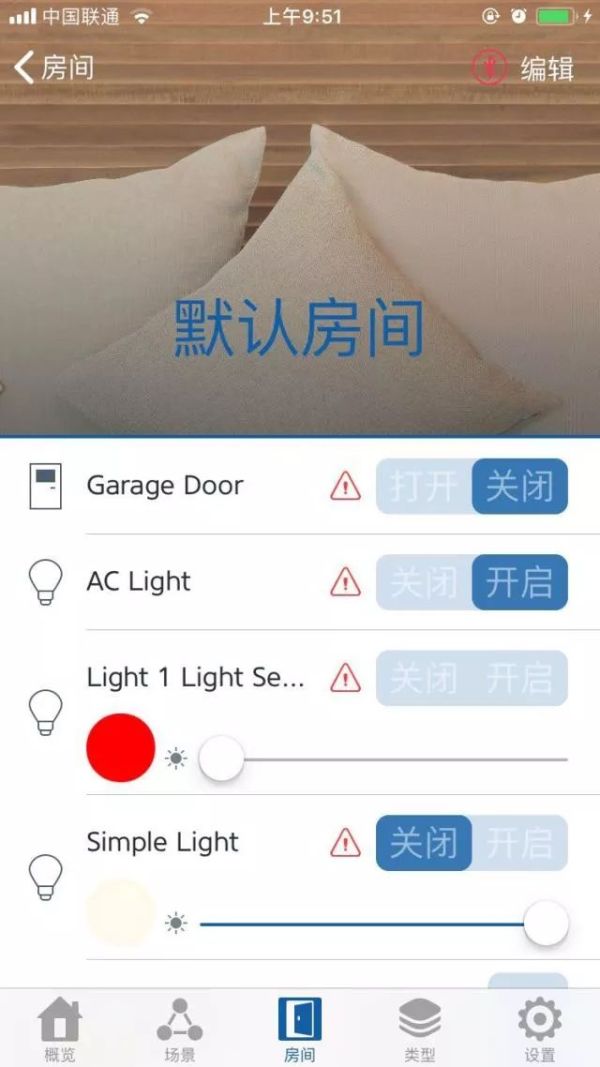

这里树莓派和手机需要处于同一wifi下，打开app需要输入匹配代码，即.js文件设置的pincode：

设置完成顺利的话即可点击手机控制led了，也可使用siri来语音控制。

Related

这个项目如果懂js的朋友会好玩很多.
refer to：
http://www.instructables.com/id/Raspberry-Pi-2-Homekit-from-zero-to-Hey-Siri/ https://www.makeuseof.com/tag/make-diy-siri-controlled-wi-fi-light/

HAP 安装Core.js无法启动问题：
https://github.com/KhaosT/HAP-NodeJS/issues/482

制作light_accessory.js
https://github.com/KhaosT/HAP-NodeJS/issues/191 https://docs.npmjs.com/getting-started/fixing-npm-permissions
HAP-NodeJS:

https://github.com/KhaosT/HAP-NodeJS

安装n模块安装node最新/最稳定版本

npm install n -g
n latest/stable
