Arduino库教程-EEPROM-EEPROM Write

EEPROM Write（写入EEPROM）

• 在Arduino和genuino板上的微控制器有512字节的EEPROM存储器：当开发板关闭时（就像一个小型硬盘驱动器）开始记忆（即是保存这些数值）。

• 这个例子说明了如何通过EEPROM.write() 函数保存从模拟引脚A0读取的数据到EEPROM里。当开发板关闭时，这些数值将会保存在EEPROM里，并且可以被稍后其他的程序恢复。

硬件要求

• Arduino 或者 Genuino 开发板

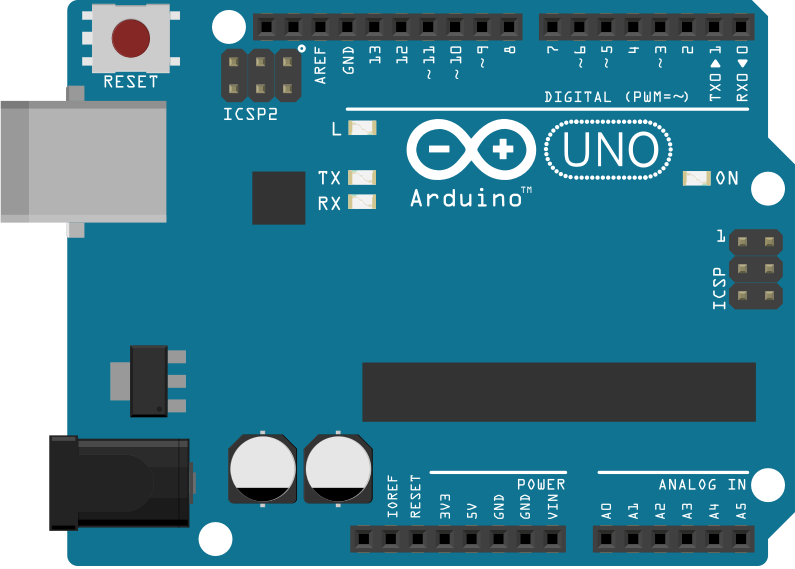

电路

这个例子的电路没有额外的连接

图由 Fritzing 软件绘制

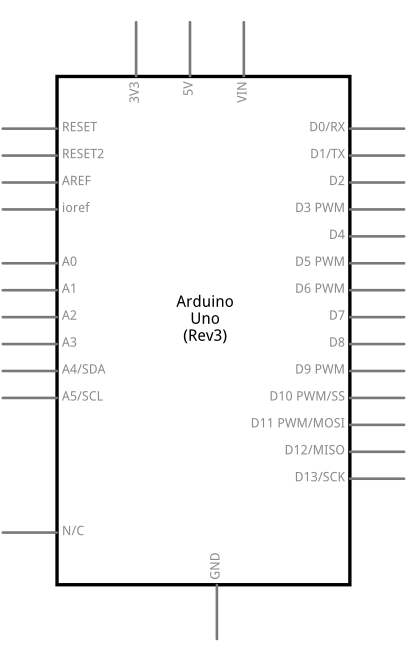

原理图

图由 Fritzing 软件绘制

样例代码

/*
 * EEPROM Write
 *
 * Stores values read from analog input 0 into the EEPROM.
 * These values will stay in the EEPROM when the board is
 * turned off and may be retrieved later by another sketch.
 */

#include <EEPROM.h>

/** the current address in the EEPROM (i.e. which byte we're going to write to next) **/
int addr = 0;

void setup() {
  /** Empty setup. **/
}

void loop() {
  /***
    Need to divide by 4 because analog inputs range from
    0 to 1023 and each byte of the EEPROM can only hold a
    value from 0 to 255.
  ***/

  int val = analogRead(0) / 4;

  /***
    Write the value to the appropriate byte of the EEPROM.
    these values will remain there when the board is
    turned off.
  ***/

  EEPROM.write(addr, val);

  /***
    Advance to the next address, when at the end restart at the beginning.

    Larger AVR processors have larger EEPROM sizes, E.g:
    - Arduno Duemilanove: 512b EEPROM storage.
    - Arduino Uno:        1kb EEPROM storage.
    - Arduino Mega:       4kb EEPROM storage.

    Rather than hard-coding the length, you should use the pre-provided length function.
    This will make your code portable to all AVR processors.
  ***/
  addr = addr + 1;
  if (addr == EEPROM.length()) {
    addr = 0;
  }

  /***
    As the EEPROM sizes are powers of two, wrapping (preventing overflow) of an
    EEPROM address is also doable by a bitwise and of the length - 1.

    ++addr &= EEPROM.length() - 1;
  ***/


  delay(100);
}

[Get Code]
