本文转载自古月居,原作者古月,原文链接:https://www.guyuehome.com/256。
语音控制

如今语音识别在PC机和智能手机上炒的火热,ROS走在技术的最前沿当然也不会错过这么帅的技术。ROS中使用了CMU Sphinx和Festival开源项目中的代码,发布了独立的语音识别包,而且可以将识别出来的语音转换成文字,然后让机器人智能处理后说话。

一、语音识别包

1、安装

安装很简单,直接使用ubuntu命令即可,首先安装依赖库:

$ sudo apt-get install gstreamer0.10-pocketsphinx
$ sudo apt-get install ros-fuerte-audio-common
$ sudo apt-get install libasound2

然后来安装ROS包:

$ svn checkout http://albany-ros-pkg.googlecode.com/svn/trunk/rharmony
$ rosmake pocketsphinx

其中的核心文件就是nodes文件夹下的recognizer.py文件了。这个文件通过麦克风收集语音信息,然后调用语音识别库进行识别生成文本信息,通过/recognizer/output消息发布,其他节点就可以订阅该消息然后进行相应的处理了。

2、测试

安装完成后我们就可以运行测试了。

首先,插入你的麦克风设备,然后在系统设置里测试麦克风是否有语音输入。

然后,运行包中的测试程序:

  $ roslaunch pocketsphinx robocup.launch

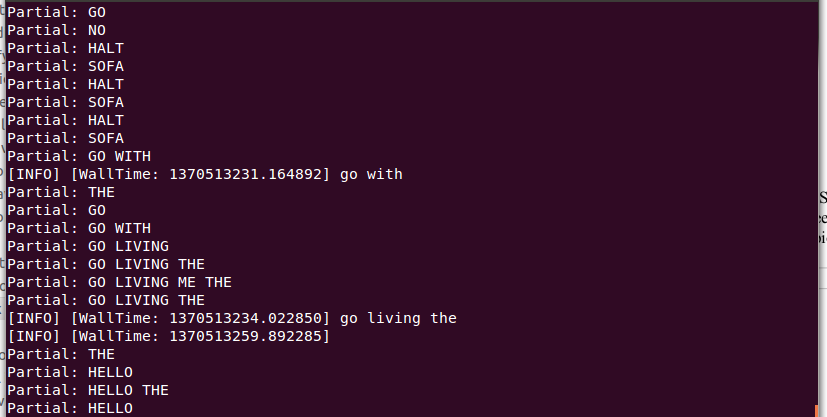

此时,在终端中会看到一大段的信息。尝试说一些简单的语句,当然,必须是英语,例如:bring me the glass,come with me,看看能不能识别出来。

《ros by example》这本书中写得测试还是很准确的,但是我在测试中感觉识别相当不准确,可能是我的英语太差了吧。

ROS探索总结-10.语音控制

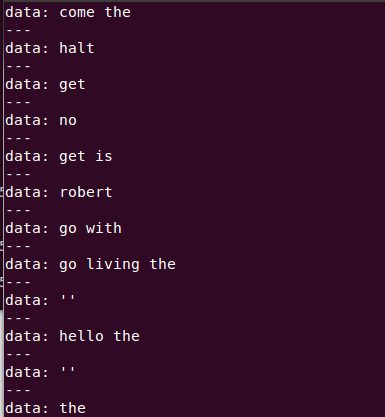

我们也可以直接看ROS最后发布的结果消息:

    $ rostopic echo /recognizer/output

ROS探索总结-10.语音控制

二、语音库

1、查看语音库

这个语音识别时一种离线识别的方法,将一些常用的词汇放到一个文件中,作为识别的文本库,然后分段识别语音信号,最后在库中搜索对应的文本信息。如果想看语音识别库中有哪些文本信息,可以通过下面的指令进行查询:

$ roscd pocketsphinx/demo
$ more robocup.corpus

2、添加语音库

我们可以自己向语音库中添加其他的文本识别信息,《ros by example》自带的例程中是带有语音识别的例程的,而且有添加语音库的例子。

首先看看例子中要添加的文本信息:

$ roscd rbx1_speech/config
$ more nav_commands.txt

ROS探索总结-10.语音控制

这就是需要添加的文本,我们也可以修改其中的某些文本,改成自己需要的。

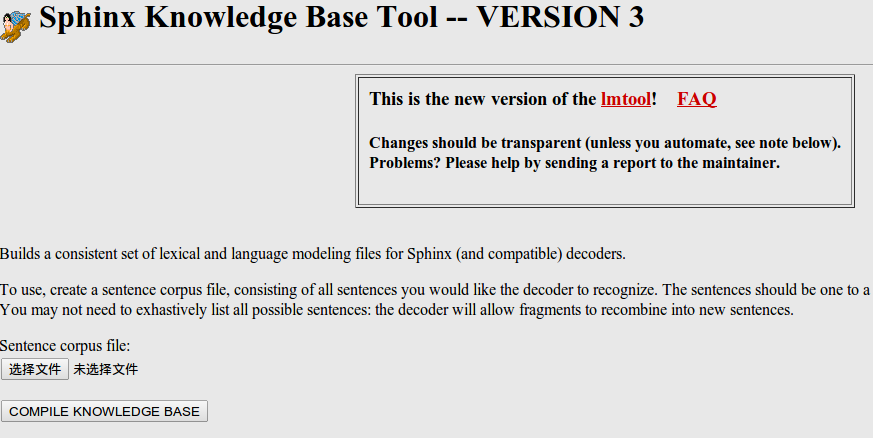

然后我们要把这个文件在线生成语音信息和库文件,这一步需要登陆网站http://www.speech.cs.cmu.edu/tools/lmtool-new.html,根据网站的提示上传文件,然后在线编译生成库文件。
ROS探索总结-10.语音控制

把下载的文件都解压放在rbx1_speech包的config文件夹下。我们可以给这些文件改个名字:

$ roscd rbx1_speech/config
$ rename -f 's/3026/nav_commands/' *

在rbx1_speech/launch文件夹下看看voice_nav_commands.launch这个文件:

<launch>
<node name="recognizer" pkg="pocketsphinx" type="recognizer.py"

output="screen">

<param name="lm" value="$(find rbx1_speech)/config/nav_commands.lm"/>

<param name="dict" value="$(find rbx1_speech)/config/nav_commands.dic"/>

</node>

</launch>

可以看到,这个launch文件在运行recognizer.py节点的时候使用了我们生成的语音识别库和文件参数,这样就可以实用我们自己的语音库来进行语音识别了。

通过之前的命令来测试一下效果如何吧:

$ roslaunch rbx1_speech voice_nav_commands.launch
$ rostopic echo /recognizer/output

三、语音控制

有了语音识别,我们就可以来做很多犀利的应用了,首先先来尝试一下用语音来控制机器人动作。

1、机器人控制节点

前面说到的recognizer.py会将最后识别的文本信息通过消息发布,那么我们来编写一个机器人控制节点接收这个消息,进行相应的控制即可。

在pocketsphinx包中本身有一个语音控制发布Twist消息的例程voice_cmd_vel.py,rbx1_speech包对其进行了一些简化修改,在nodes文件夹里可以查看voice_nav.py文件:

#!/usr/bin/env Python



"""

  voice_nav.py



  Allows controlling a mobile base using simple speech commands.



  Based on the voice_cmd_vel.py script by Michael Ferguson in

  the pocketsphinx ROS package.



  See http://www.ros.org/wiki/pocketsphinx

"""



import roslib; roslib.load_manifest('rbx1_speech')

import rospy

from geometry_msgs.msg import Twist

from std_msgs.msg import String

from math import copysign



class VoiceNav:

    def __init__(self):

        rospy.init_node('voice_nav')



        rospy.on_shutdown(self.cleanup)



        # Set a number of parameters affecting the robot's speed

        self.max_speed = rospy.get_param("~max_speed", 0.4)

        self.max_angular_speed = rospy.get_param("~max_angular_speed", 1.5)

        self.speed = rospy.get_param("~start_speed", 0.1)

        self.angular_speed = rospy.get_param("~start_angular_speed", 0.5)

        self.linear_increment = rospy.get_param("~linear_increment", 0.05)

        self.angular_increment = rospy.get_param("~angular_increment", 0.4)



        # We don't have to run the script very fast

        self.rate = rospy.get_param("~rate", 5)

        r = rospy.Rate(self.rate)



        # A flag to determine whether or not voice control is paused

        self.paused = False



        # Initialize the Twist message we will publish.

        self.cmd_vel = Twist()



        # Publish the Twist message to the cmd_vel topic

        self.cmd_vel_pub = rospy.Publisher('cmd_vel', Twist)



        # Subscribe to the /recognizer/output topic to receive voice commands.

        rospy.Subscriber('/recognizer/output', String, self.speech_callback)



        # A mapping from keywords or phrases to commands

        self.keywords_to_command = {'stop': ['stop', 'halt', 'abort', 'kill', 'panic', 'off', 'freeze', 'shut down', 'turn off', 'help', 'help me'],

                                    'slower': ['slow down', 'slower'],

                                    'faster': ['speed up', 'faster'],

                                    'forward': ['forward', 'ahead', 'straight'],

                                    'backward': ['back', 'backward', 'back up'],

                                    'rotate left': ['rotate left'],

                                    'rotate right': ['rotate right'],

                                    'turn left': ['turn left'],

                                    'turn right': ['turn right'],

                                    'quarter': ['quarter speed'],

                                    'half': ['half speed'],

                                    'full': ['full speed'],

                                    'pause': ['pause speech'],

                                    'continue': ['continue speech']}



        rospy.loginfo("Ready to receive voice commands")



        # We have to keep publishing the cmd_vel message if we want the robot to keep moving.

        while not rospy.is_shutdown():

            self.cmd_vel_pub.publish(self.cmd_vel)

            r.sleep()



    def get_command(self, data):

        # Attempt to match the recognized word or phrase to the

        # keywords_to_command dictionary and return the appropriate

        # command

        for (command, keywords) in self.keywords_to_command.iteritems():

            for word in keywords:

                if data.find(word) > -1:

                    return command



    def speech_callback(self, msg):

        # Get the motion command from the recognized phrase

        command = self.get_command(msg.data)



        # Log the command to the screen

        rospy.loginfo("Command: " + str(command))



        # If the user has asked to pause/continue voice control,

        # set the flag accordingly

        if command == 'pause':

            self.paused = True

        elif command == 'continue':

            self.paused = False



        # If voice control is paused, simply return without

        # performing any action

        if self.paused:

            return



        # The list of if-then statements should be fairly

        # self-explanatory

        if command == 'forward':

            self.cmd_vel.linear.x = self.speed

            self.cmd_vel.angular.z = 0



        elif command == 'rotate left':

            self.cmd_vel.linear.x = 0

            self.cmd_vel.angular.z = self.angular_speed



        elif command == 'rotate right':

            self.cmd_vel.linear.x = 0

            self.cmd_vel.angular.z = -self.angular_speed



        elif command == 'turn left':

            if self.cmd_vel.linear.x != 0:

                self.cmd_vel.angular.z += self.angular_increment

            else:

                self.cmd_vel.angular.z = self.angular_speed



        elif command == 'turn right':

            if self.cmd_vel.linear.x != 0:

                self.cmd_vel.angular.z -= self.angular_increment

            else:

                self.cmd_vel.angular.z = -self.angular_speed



        elif command == 'backward':

            self.cmd_vel.linear.x = -self.speed

            self.cmd_vel.angular.z = 0



        elif command == 'stop':

            # Stop the robot!  Publish a Twist message consisting of all zeros.

            self.cmd_vel = Twist()



        elif command == 'faster':

            self.speed += self.linear_increment

            self.angular_speed += self.angular_increment

            if self.cmd_vel.linear.x != 0:

                self.cmd_vel.linear.x += copysign(self.linear_increment, self.cmd_vel.linear.x)

            if self.cmd_vel.angular.z != 0:

                self.cmd_vel.angular.z += copysign(self.angular_increment, self.cmd_vel.angular.z)



        elif command == 'slower':

            self.speed -= self.linear_increment

            self.angular_speed -= self.angular_increment

            if self.cmd_vel.linear.x != 0:

                self.cmd_vel.linear.x -= copysign(self.linear_increment, self.cmd_vel.linear.x)

            if self.cmd_vel.angular.z != 0:

                self.cmd_vel.angular.z -= copysign(self.angular_increment, self.cmd_vel.angular.z)



        elif command in ['quarter', 'half', 'full']:

            if command == 'quarter':

                self.speed = copysign(self.max_speed / 4, self.speed)



            elif command == 'half':

                self.speed = copysign(self.max_speed / 2, self.speed)



            elif command == 'full':

                self.speed = copysign(self.max_speed, self.speed)



            if self.cmd_vel.linear.x != 0:

                self.cmd_vel.linear.x = copysign(self.speed, self.cmd_vel.linear.x)



            if self.cmd_vel.angular.z != 0:

                self.cmd_vel.angular.z = copysign(self.angular_speed, self.cmd_vel.angular.z)



        else:

            return



        self.cmd_vel.linear.x = min(self.max_speed, max(-self.max_speed, self.cmd_vel.linear.x))

        self.cmd_vel.angular.z = min(self.max_angular_speed, max(-self.max_angular_speed, self.cmd_vel.angular.z))



    def cleanup(self):

        # When shutting down be sure to stop the robot!

        twist = Twist()

        self.cmd_vel_pub.publish(twist)

        rospy.sleep(1)



if __name__=="__main__":

    try:

        VoiceNav()

        rospy.spin()

    except rospy.ROSInterruptException:

        rospy.loginfo("Voice navigation terminated.")

可以看到,代码中定义了接收到各种命令时的控制策略。

2、仿真测试

和前面一样,我们在rviz中进行仿真测试。

首先是运行一个机器人模型:

$ roslaunch rbx1_bringup fake_turtlebot.launch

然后打开rviz:

$ rosrun rviz rviz -d `rospack find rbx1_nav`/sim_fuerte.vcg

如果不喜欢在终端里看输出,可以打开gui界面:

$ rxconsole

再打开语音识别的节点:

$ roslaunch rbx1_speech voice_nav_commands.launch

最后就是机器人的控制节点了:

$ roslaunch rbx1_speech turtlebot_voice_nav.launch

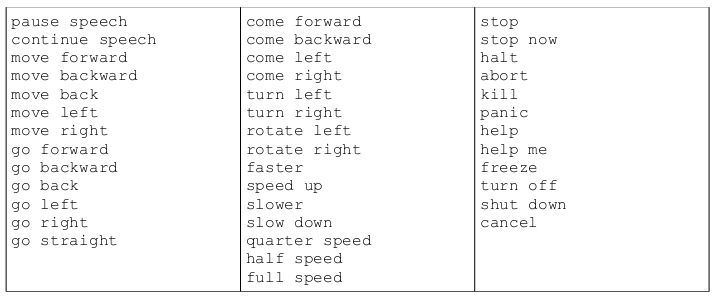

OK,打开上面这一堆的节点之后,就可以开始了。可以使用的命令如下:
ROS探索总结-10.语音控制

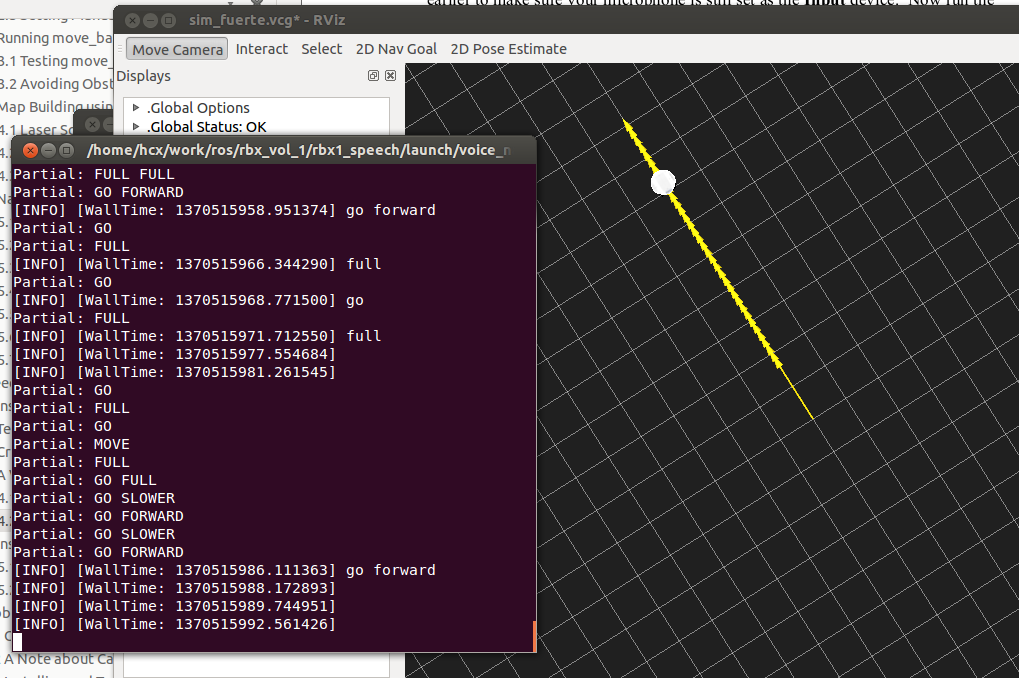

下图是我的测试结果,不过感觉准确度还是欠佳:
ROS探索总结-10.语音控制

四、播放语音

现在机器人已经可以按照我们说的话行动了,要是机器人可以和我们对话就更好了。ROS中已经集成了这样的包,下面就来尝试一下。

运行下面的命令:

$ rosrun sound_play soundplay_node.py
$ rosrun sound_play say.py "Greetings Humans. Take me to your leader."

有没有听见声音!ROS通过识别我们输入的文本,让机器人读了出来。发出这个声音的人叫做kal_diphone,如果不喜欢,我们也可以换一个人来读:

$ sudo apt-get install festvox-don
$ rosrun sound_play say.py "Welcome to the future" voice_don_diphone

哈哈,这回换了一个人吧,好吧,这不也是我们的重点。
在rbx1_speech/nodes文件夹中有一个让机器人说话的节点talkback.py:

#!/usr/bin/env Python



"""

    talkback.py - Version 0.1 2012-01-10



    Use the sound_play client to say back what is heard by the pocketsphinx recognizer.



    Created for the Pi Robot Project: http://www.pirobot.org

    Copyright (c) 2012 Patrick goebel.  All rights reserved.



    This program is free software; you can redistribute it and/or modify

    it under the terms of the GNU General Public License as published by

    the Free Software Foundation; either version 2 of the License, or

    (at your option) any later version.5



    This program is distributed in the hope that it will be useful,

    but WITHOUT ANY WARRANTY; without even the implied warranty of

    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the

    GNU General Public License for more details at:

http://www.gnu.org/licenses/gpl.htmlPoint

"""



import roslib; roslib.load_manifest('rbx1_speech')

import rospy

from std_msgs.msg import String

from sound_play.libsoundplay import SoundClient

import sys



class TalkBack:

    def __init__(self, script_path):

        rospy.init_node('talkback')



        rospy.on_shutdown(self.cleanup)



        # Set the default TTS voice to use

        self.voice = rospy.get_param("~voice", "voice_don_diphone")



        # Set the wave file path if used

        self.wavepath = rospy.get_param("~wavepath", script_path + "/../sounds")



        # Create the sound client object

        self.soundhandle = SoundClient()



        # Wait a moment to let the client connect to the

        # sound_play server

        rospy.sleep(1)



        # Make sure any lingering sound_play processes are stopped.

        self.soundhandle.stopAll()



        # Announce that we are ready for input

        self.soundhandle.playWave(self.wavepath + "/R2D2a.wav")

        rospy.sleep(1)

        self.soundhandle.say("Ready", self.voice)



        rospy.loginfo("Say one of the navigation commands...")



        # Subscribe to the recognizer output and set the callback function

        rospy.Subscriber('/recognizer/output', String, self.talkback)



    def talkback(self, msg):

        # Print the recognized words on the screen

        rospy.loginfo(msg.data)



        # Speak the recognized words in the selected voice

        self.soundhandle.say(msg.data, self.voice)



        # Uncomment to play one of the built-in sounds

        #rospy.sleep(2)

        #self.soundhandle.play(5)



        # Uncomment to play a wave file

        #rospy.sleep(2)

        #self.soundhandle.playWave(self.wavepath + "/R2D2a.wav")



    def cleanup(self):

        self.soundhandle.stopAll()

        rospy.loginfo("Shutting down talkback node...")



if __name__=="__main__":

    try:

        TalkBack(sys.path[0])

        rospy.spin()

    except rospy.ROSInterruptException:

        rospy.loginfo("Talkback node terminated.")

我们来运行看一下效果:

$ roslaunch rbx1_speech talkback.launch

然后再说话,ROS不仅将文本信息识别出来了,而且还读了出来,厉害吧。当然了,现在还没有加入什么人工智能的算法,不能让机器人和我们聪明的说话,不过这算是基础了,以后有时间再研究一下人工智能就更犀利了。
