setCursor() method

  • 液晶库允许你控制和日立HD44780驱动兼容的LCD显示器。他们在那里有很多显示器,你通常可以告诉他们的16针接口可以了。

  • 这个例子程序展示了如何使用setCursor()的方法来重新定位光标。移动光标,只需要调用setCursor()以行和列的位置。例如,对一个2×16 的显示屏:

lcd.setCursor(0, 0); // top left
lcd.setCursor(15, 0); // top right
lcd.setCursor(0, 1); // bottom left
lcd.setCursor(15, 1); // bottom right

硬件要求

  • Arduino or Genuino Board
  • LCD 显示屏 (和日立HD44780驱动兼容)
  • 焊接到LCD显示屏引脚的排针
  • 10k ohm 电位计
  • 220 ohm 电阻
  • 连接线
  • 面包板

电路

  • 在连接液晶显示屏到你的Arduino板之前,我们建议到焊接一组排针到LCD显示屏的连接器上(14或者16引脚数),你在上面的图可以看到。

  • 液晶显示屏连接到电线板,连接引脚:

LCD RS pin to digital pin 12
LCD Enable pin to digital pin 11
LCD D4 pin to digital pin 5
LCD D5 pin to digital pin 4
LCD D6 pin to digital pin 3
LCD D7 pin to digital pin 2
  • 此外,连接10K电位计到+5V和GND,它的转轴(output)为LCD屏的VO引脚(pin3)。一个220欧姆的电阻是用来为显示屏的背光提供电源,通常在液晶显示器连接器的引脚15和16上。

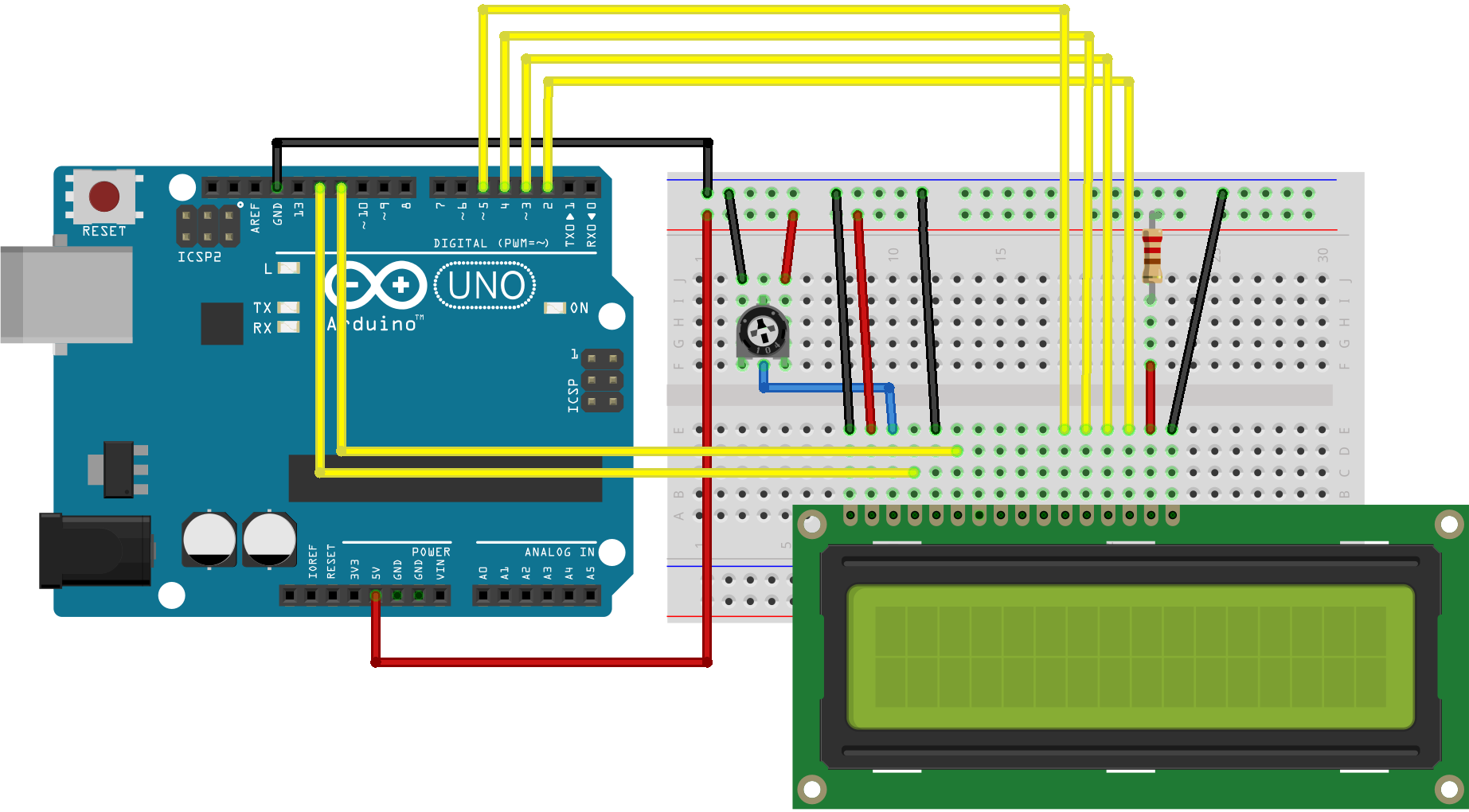

    Arduino库教程-液晶-Set Cursor
    图由 Fritzing 绘制

原理图

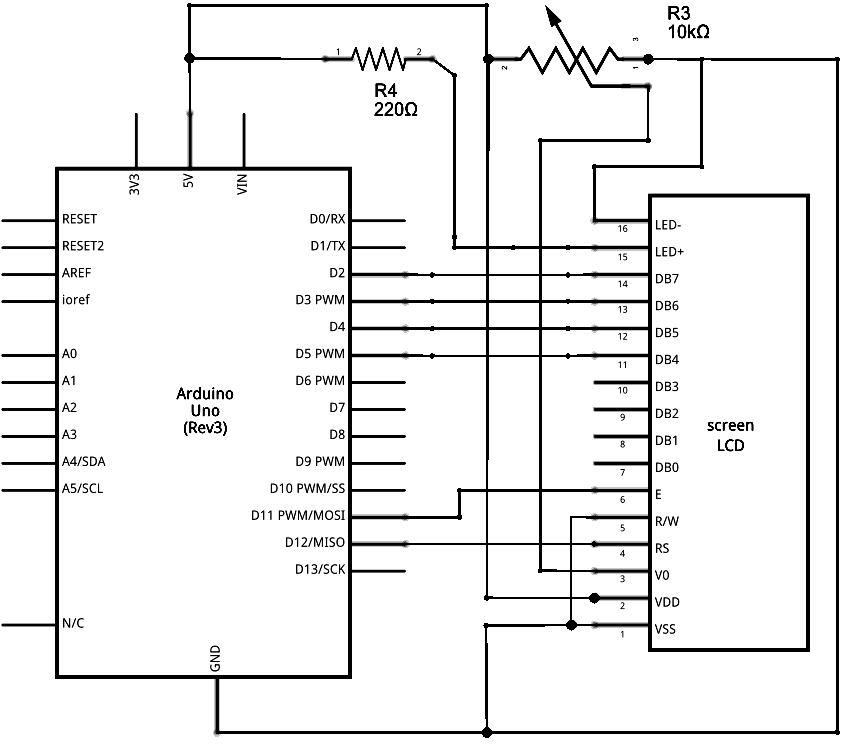

Arduino库教程-液晶-Set Cursor
图由 Fritzing 绘制

样例代码

/*
  LiquidCrystal Library - setCursor

 Demonstrates the use a 16x2 LCD display.  The LiquidCrystal
 library works with all LCD displays that are compatible with the
 Hitachi HD44780 driver. There are many of them out there, and you
 can usually tell them by the 16-pin interface.

 This sketch prints to all the positions of the LCD using the
 setCursor() method:

  The circuit:
 * LCD RS pin to digital pin 12
 * LCD Enable pin to digital pin 11
 * LCD D4 pin to digital pin 5
 * LCD D5 pin to digital pin 4
 * LCD D6 pin to digital pin 3
 * LCD D7 pin to digital pin 2
 * LCD R/W pin to ground
 * 10K resistor:
 * ends to +5V and ground
 * wiper to LCD VO pin (pin 3)

 Library originally added 18 Apr 2008
 by David A. Mellis
 library modified 5 Jul 2009
 by Limor Fried (http://www.ladyada.net)
 example added 9 Jul 2009
 by Tom Igoe
 modified 22 Nov 2010
 by Tom Igoe

 This example code is in the public domain.

http://www.arduino.cc/en/Tutorial/LiquidCrystalSetCursor

 */

// include the library code:
#include <LiquidCrystal.h>

// these constants won't change.  But you can change the size of
// your LCD using them:
const int numRows = 2;
const int numCols = 16;

// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);

void setup() {
  // set up the LCD's number of columns and rows:
  lcd.begin(numCols, numRows);
}

void loop() {
  // loop from ASCII 'a' to ASCII 'z':
  for (int thisLetter = 'a'; thisLetter <= 'z'; thisLetter++) {
    // loop over the columns:
    for (int  thisRow = 0; thisRow < numRows; thisRow++) {
      // loop over the rows:
      for (int thisCol = 0; thisCol < numCols; thisCol++) {
        // set the cursor position:
        lcd.setCursor(thisCol, thisRow);
        // print the letter:
        lcd.write(thisLetter);
        delay(200);
      }
    }
  }
}

[Get Code]
